Pad-Mounted Distribution Transformer with Service Doors 3D Model

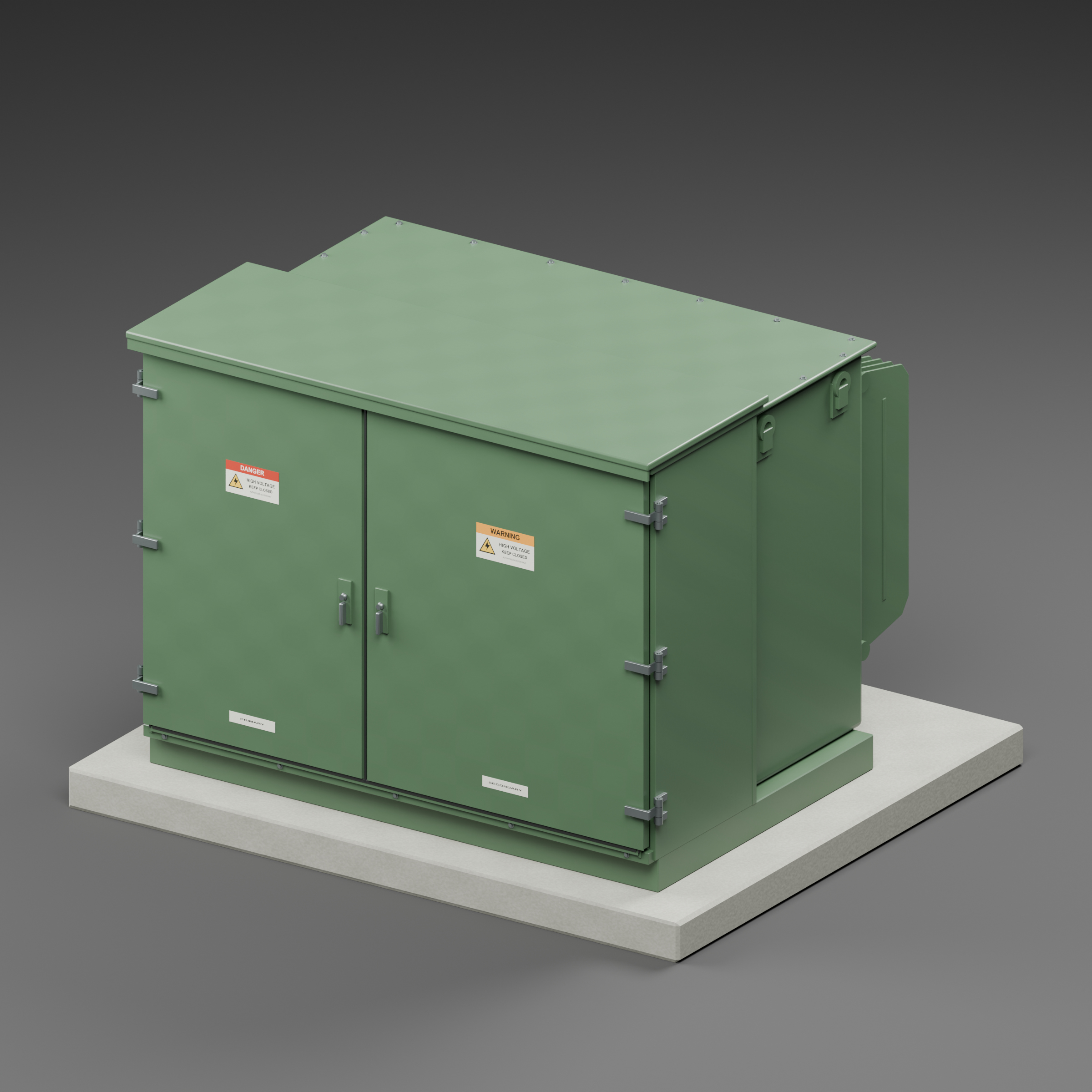

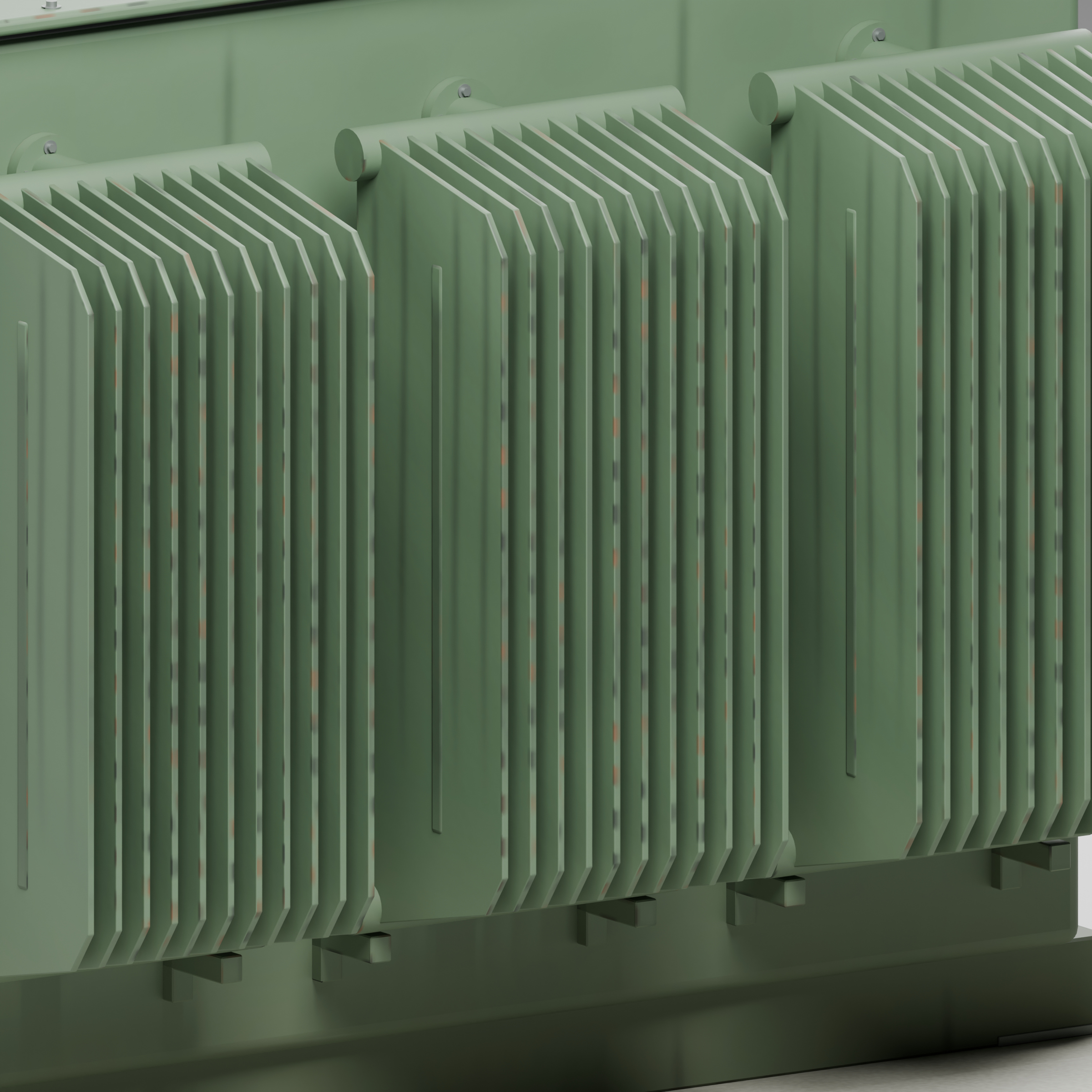

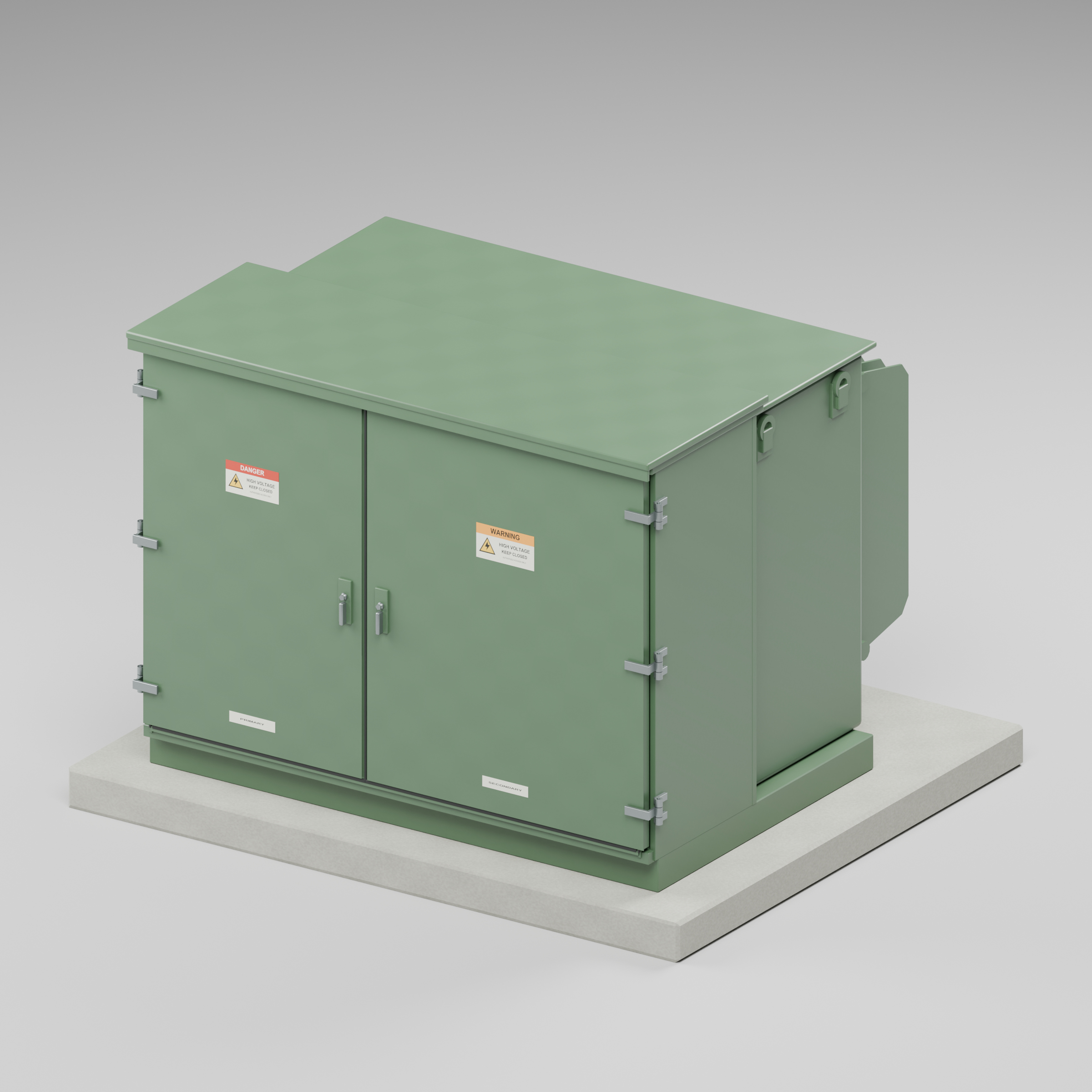

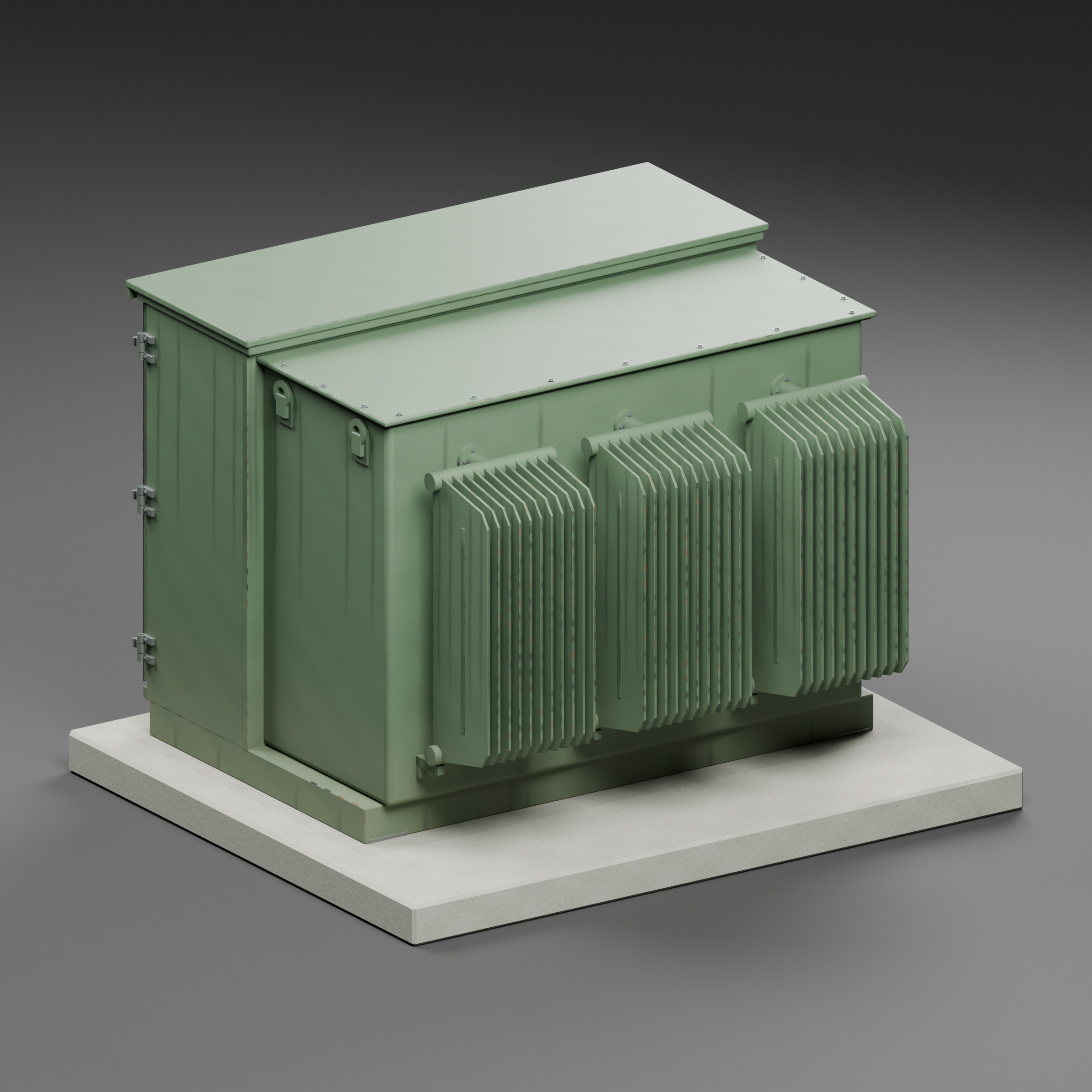

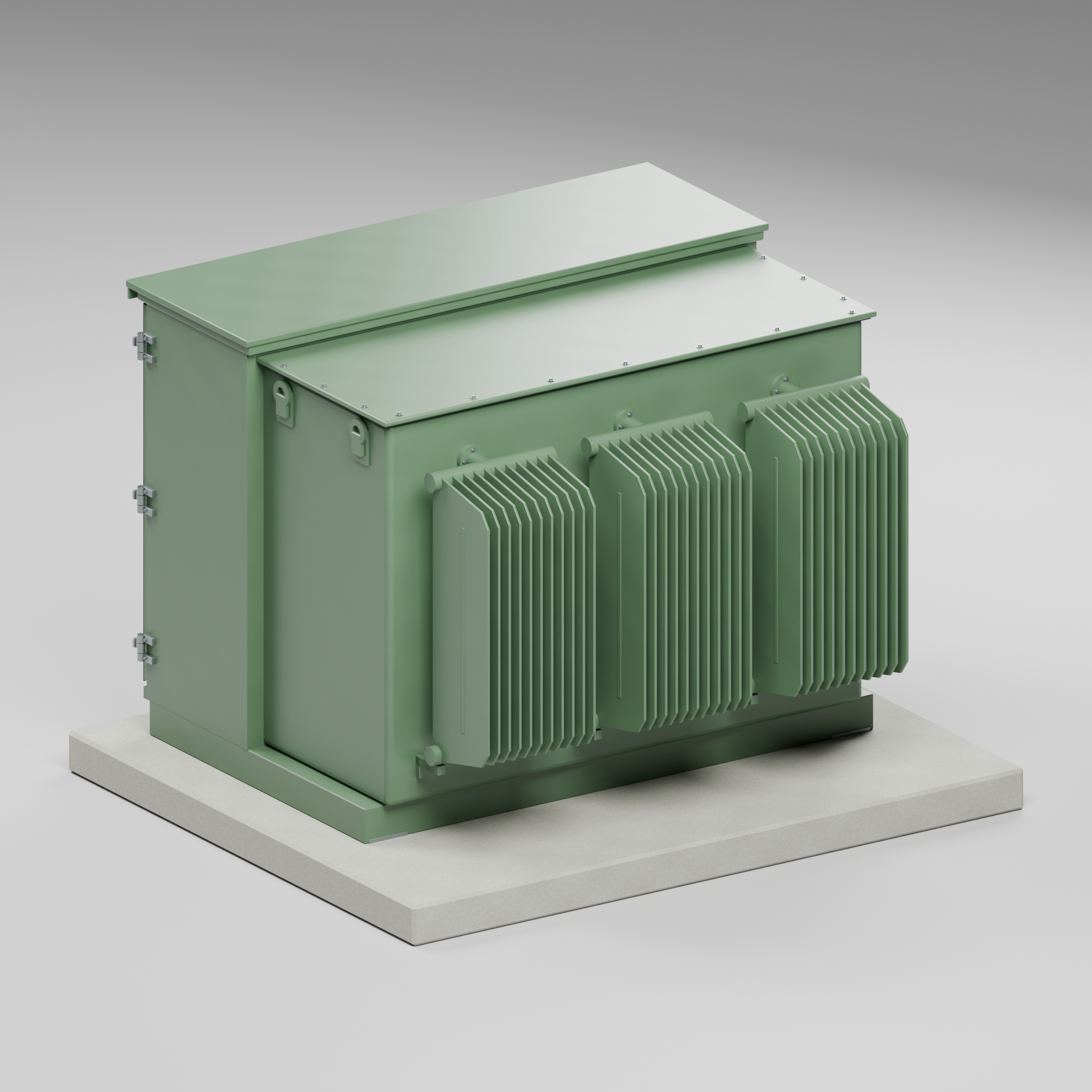

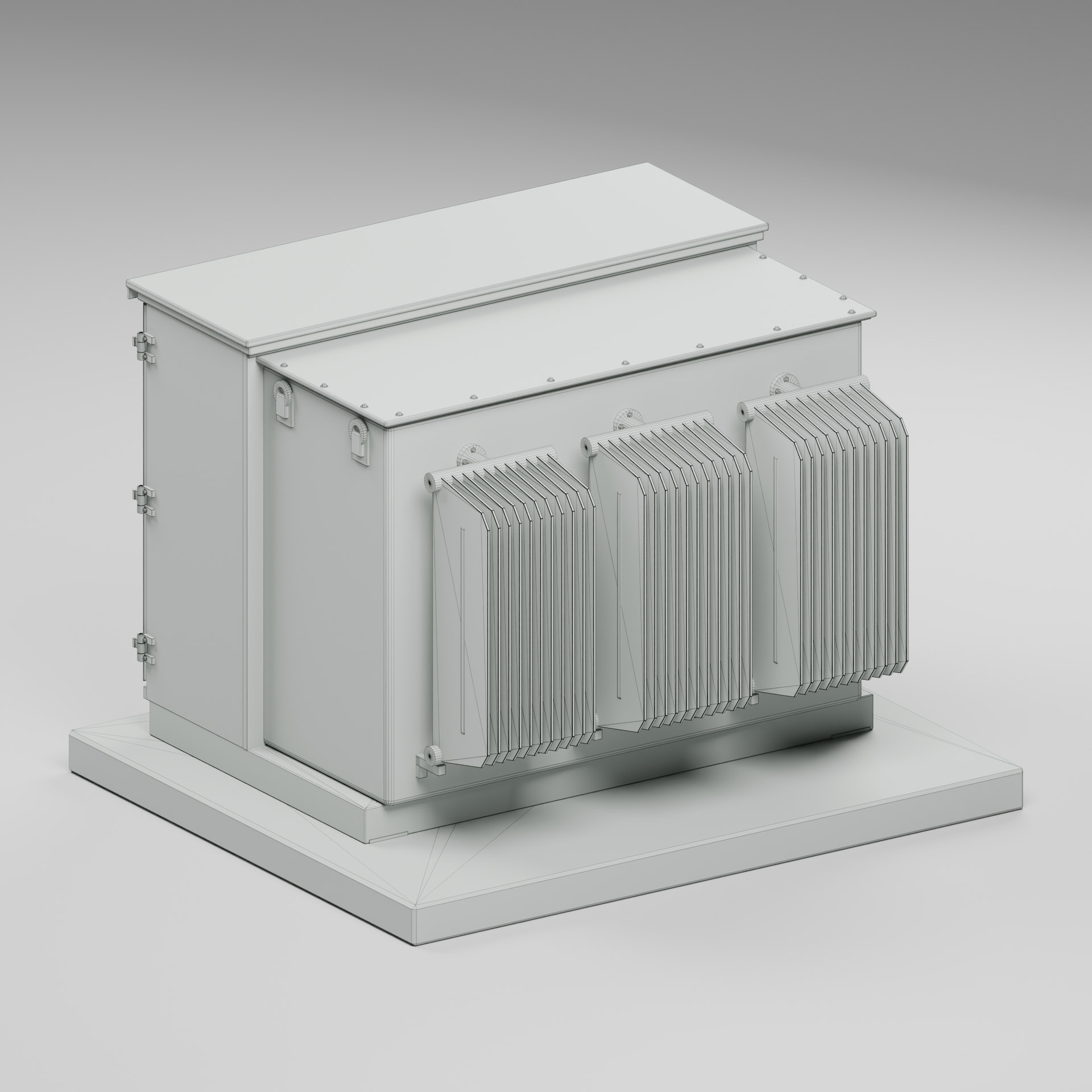

Add a three-phase distribution transformer to industrial yards, commercial buildings, utility environments and infrastructure visualizations. This original, unbranded design combines a sealed liquid-filled tank with three rear cooling banks, a bolted cover, lifting eyes and a concrete pad with cable openings.

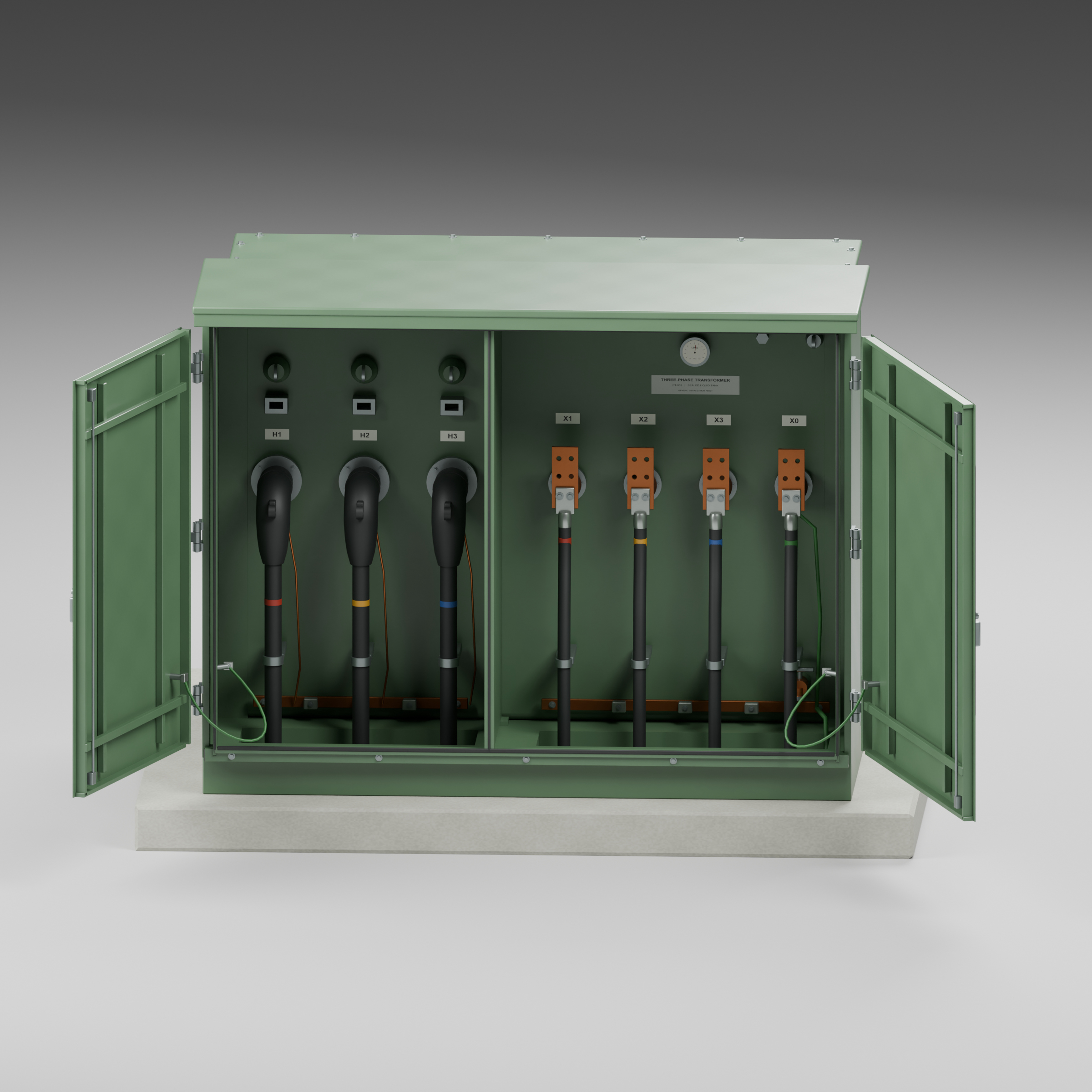

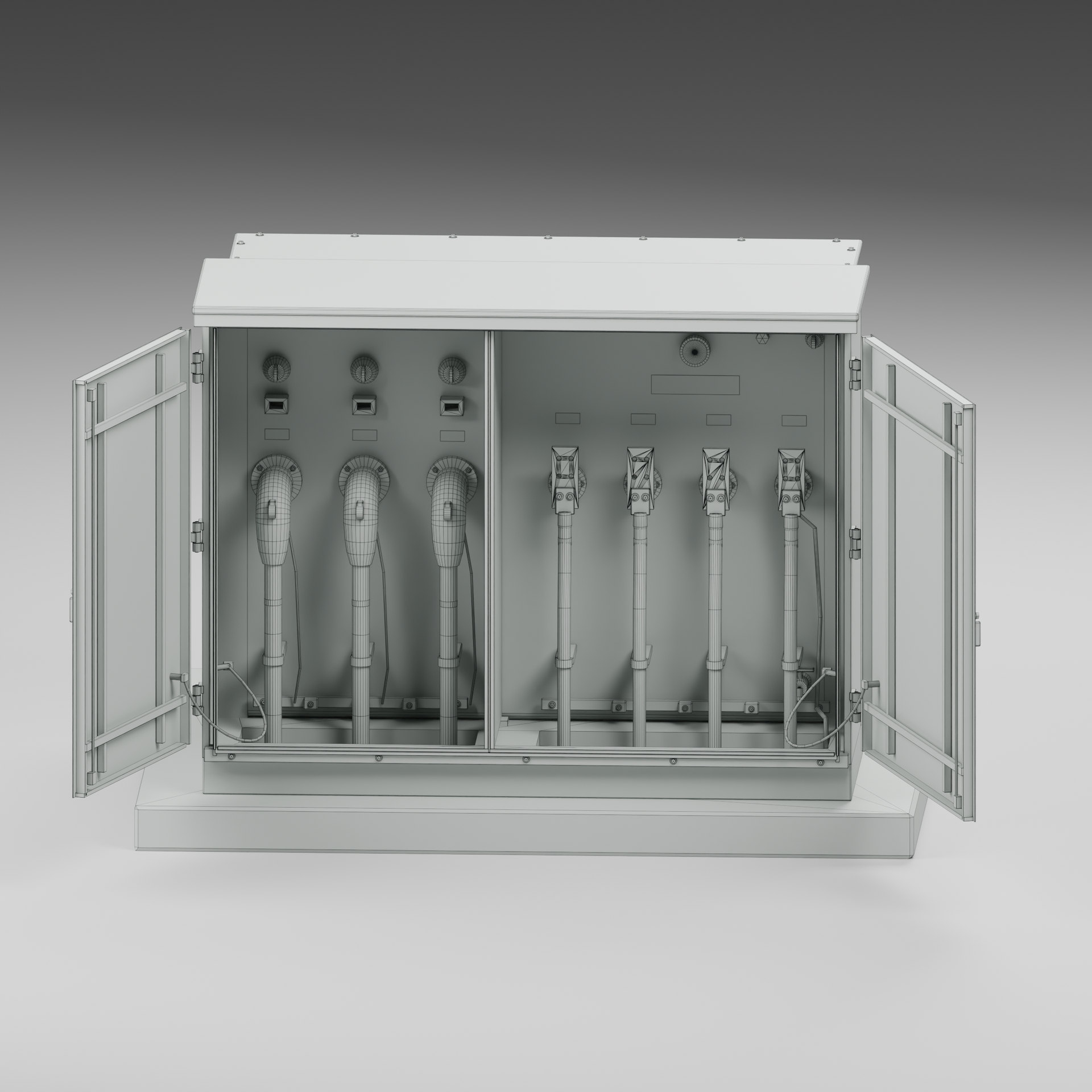

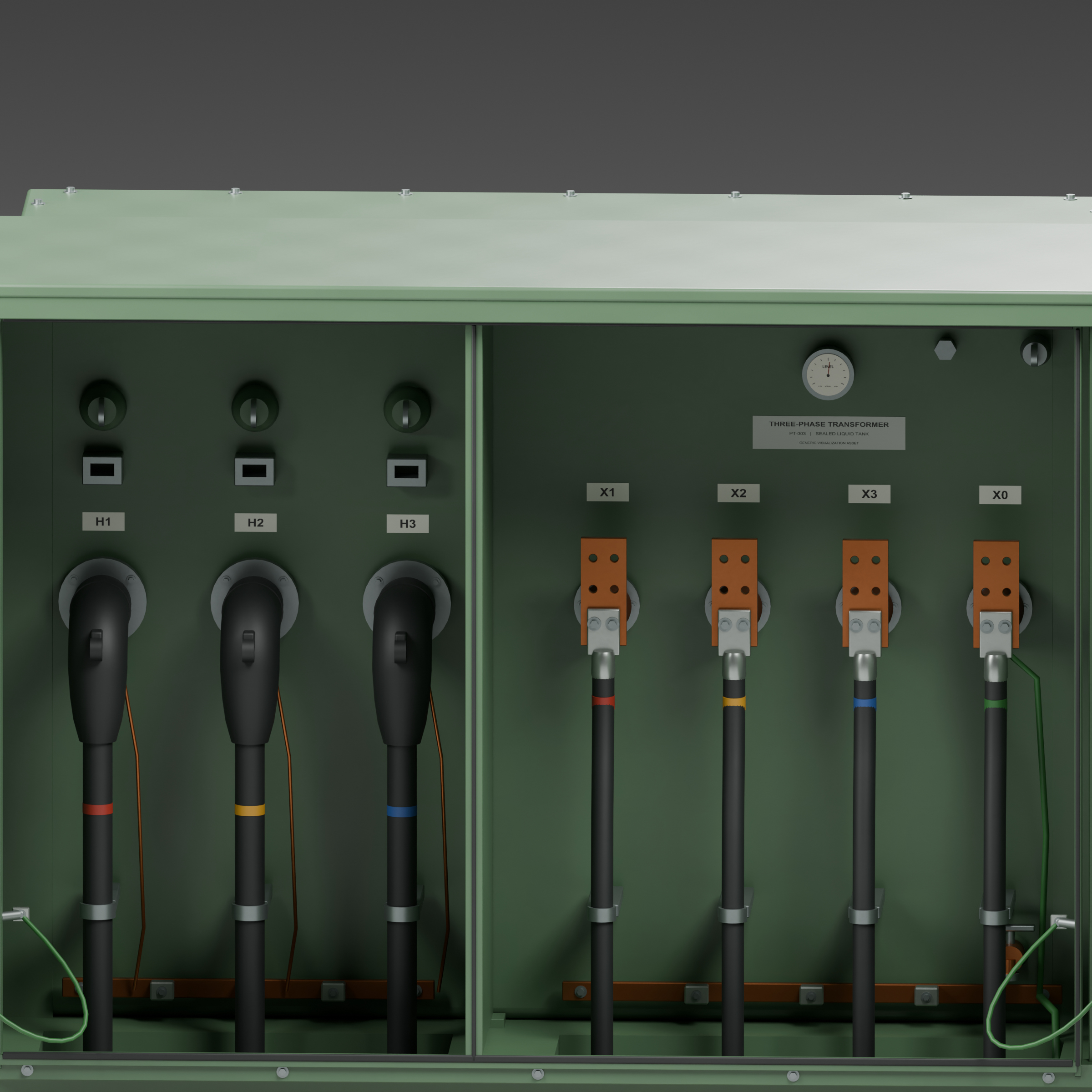

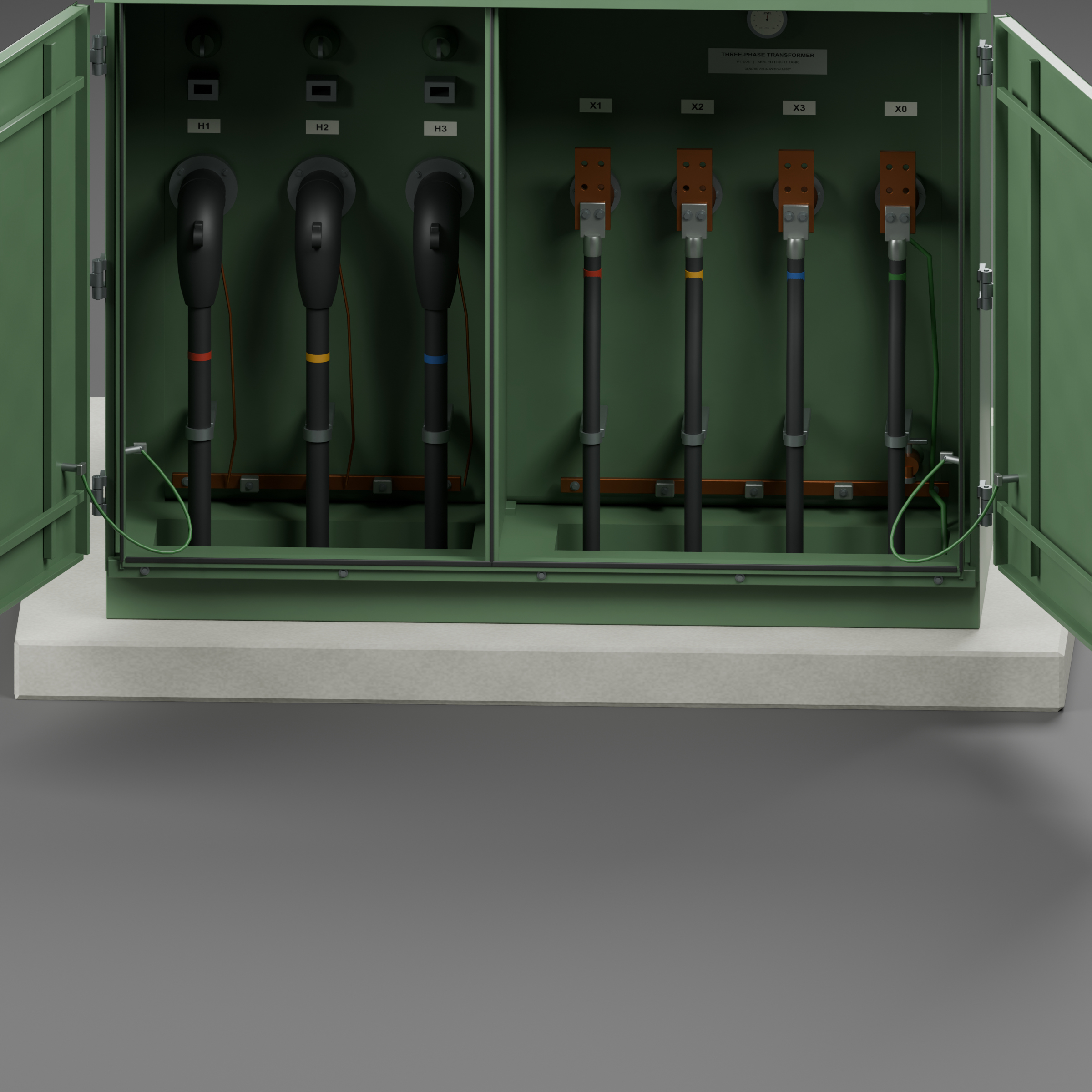

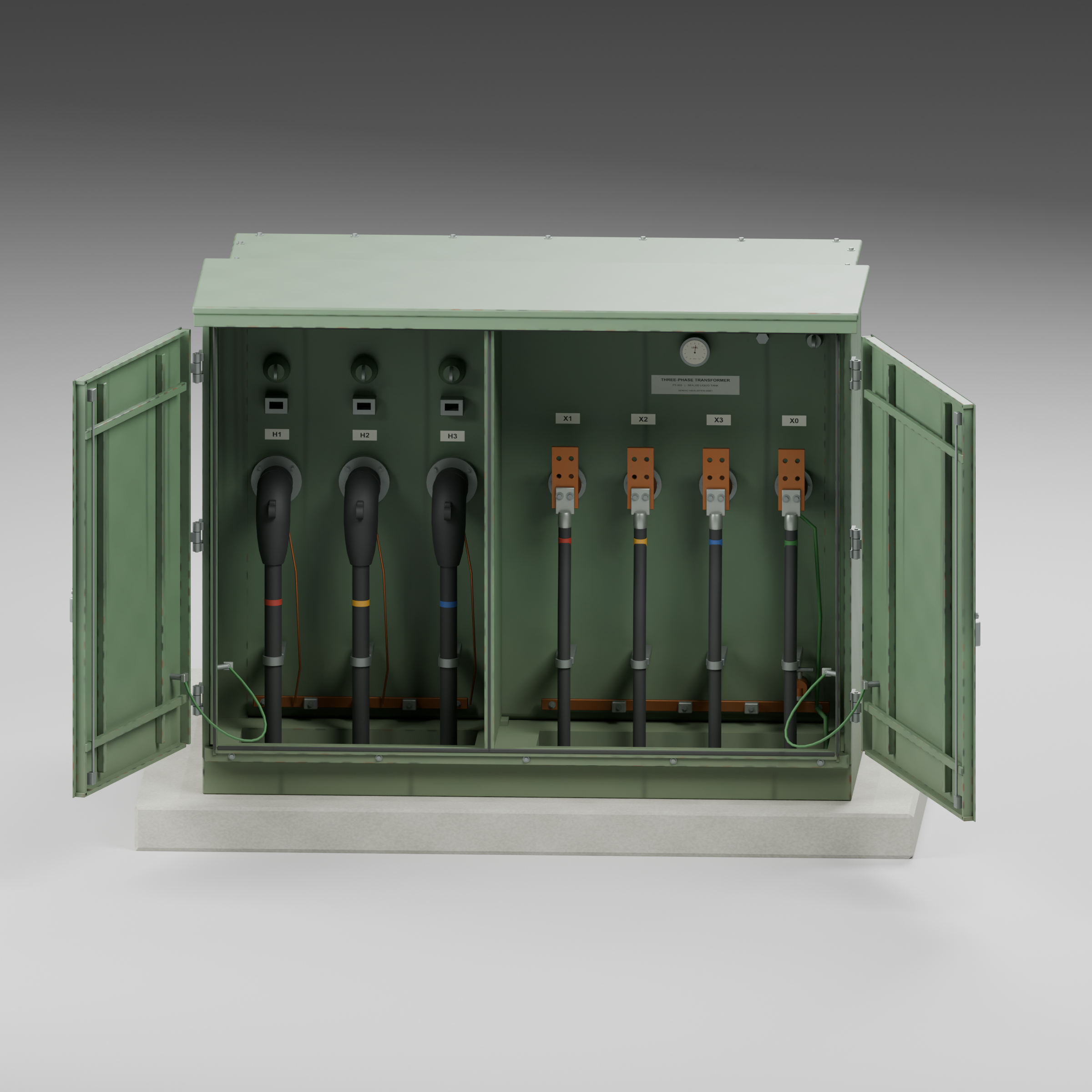

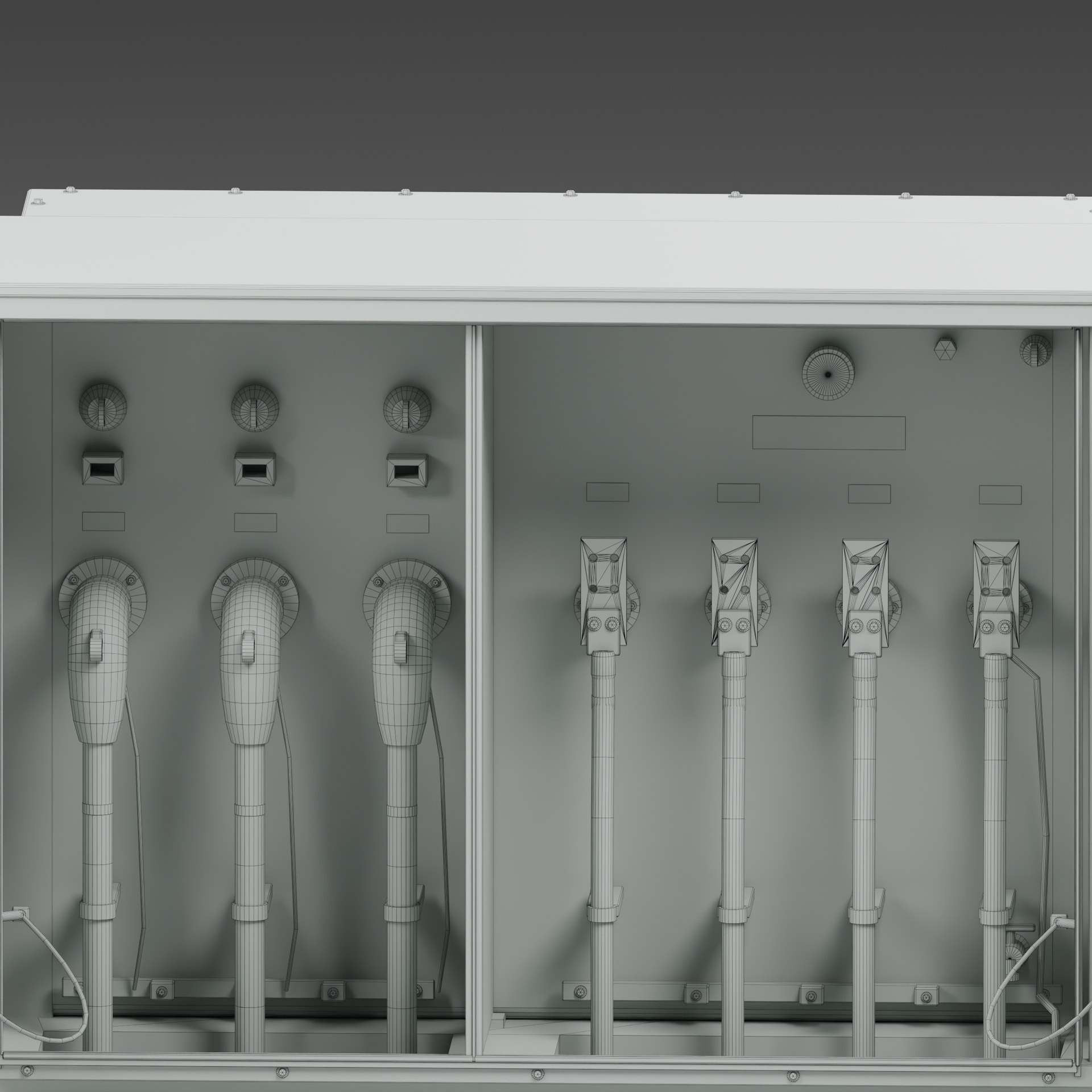

Two service doors reveal a divided connection bay with three screened primary elbows, four secondary spade and lug groups including neutral, supported leads and grounding hardware. Door-mounted fittings follow the leaves, while flexible bonding leads remain attached during the supplied open-and-close motion.

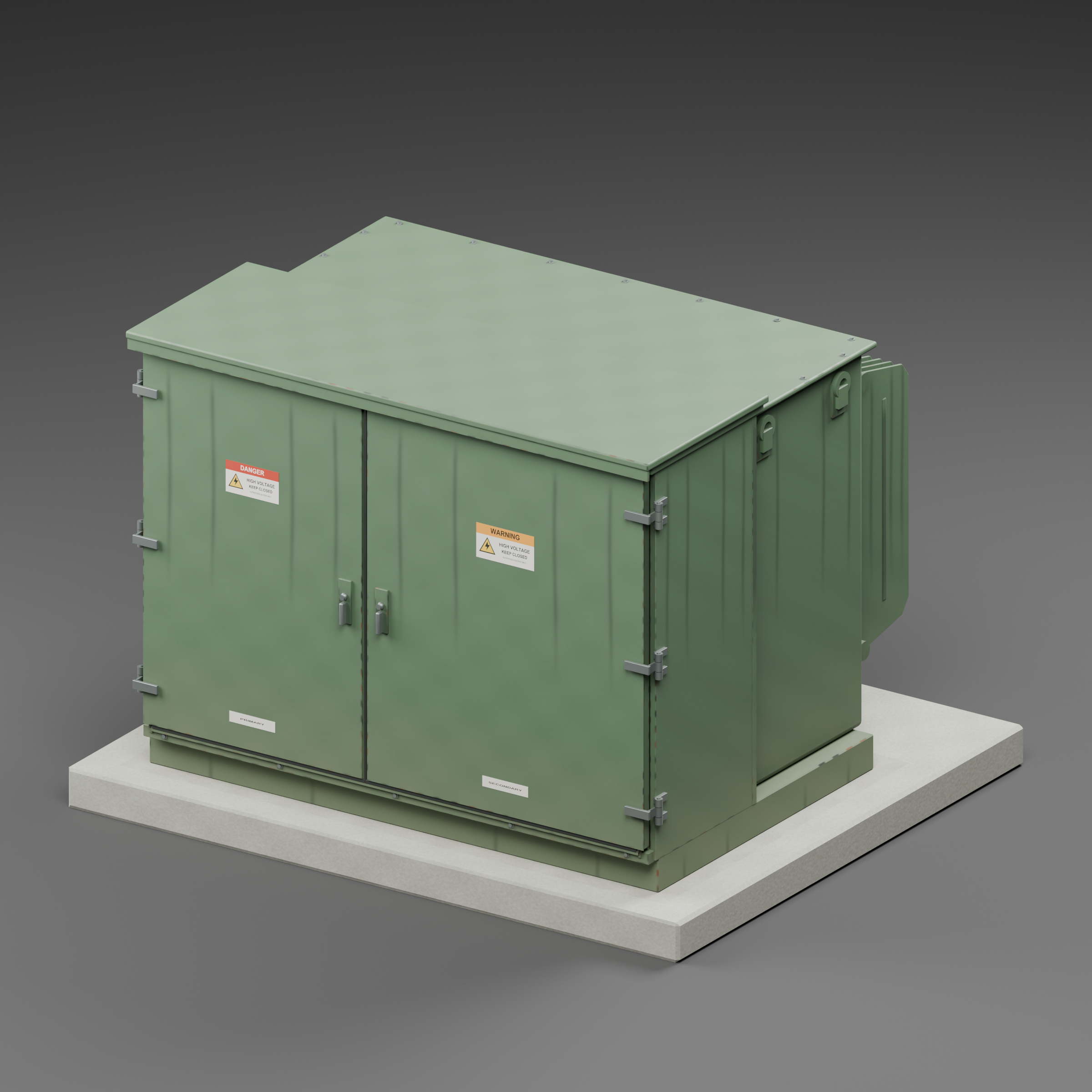

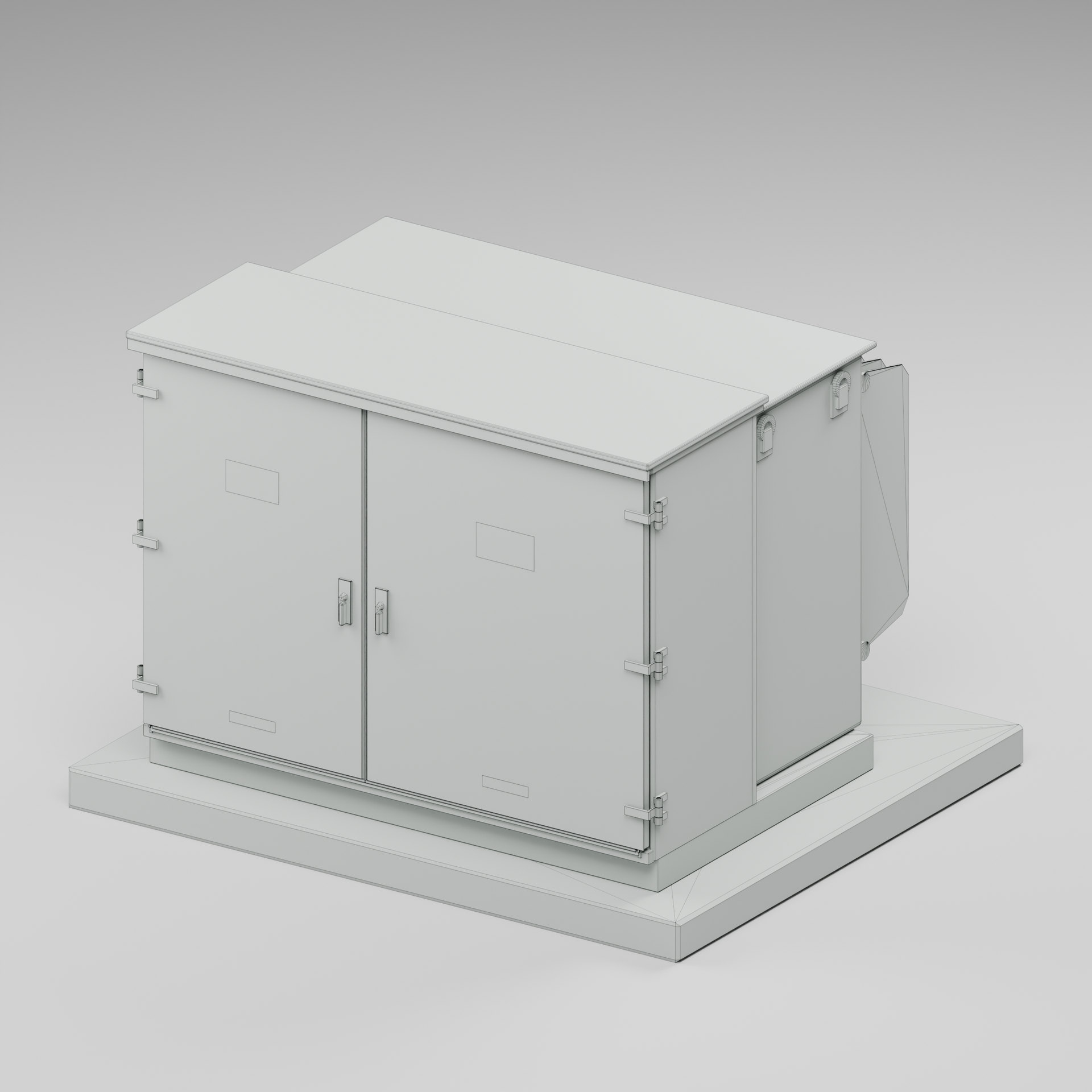

Clean and field-worn PBR finishes share the same geometry and UVs. Detailed LOD0 and reduced LOD1 alternatives let you choose the detail needed for your scene. Editable Blender files and tested FBX, OBJ/MTL and GLB alternatives include texture resources and import notes. OBJ supplies a static closed-pose version.

The equipment is a generic visualization asset without a manufacturer rating or simulated electrical internals. Studio lighting and presentation backgrounds are excluded from the model files.
