Help for an multi-part Movement in Daz Studio (CLOSED)

eye137
bluewoodsSun, Sep 06
Karma: 278

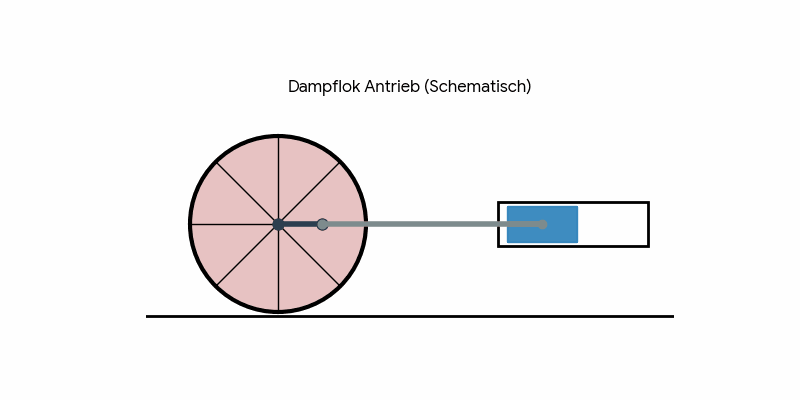

Hello, I am looking for a way to implement a multi-part Movement in Daz Studio. I once found a GIF that illustrates my Idea quite well. I want to implement a rotational Movement and an up-and-down Movement.

Forum Image

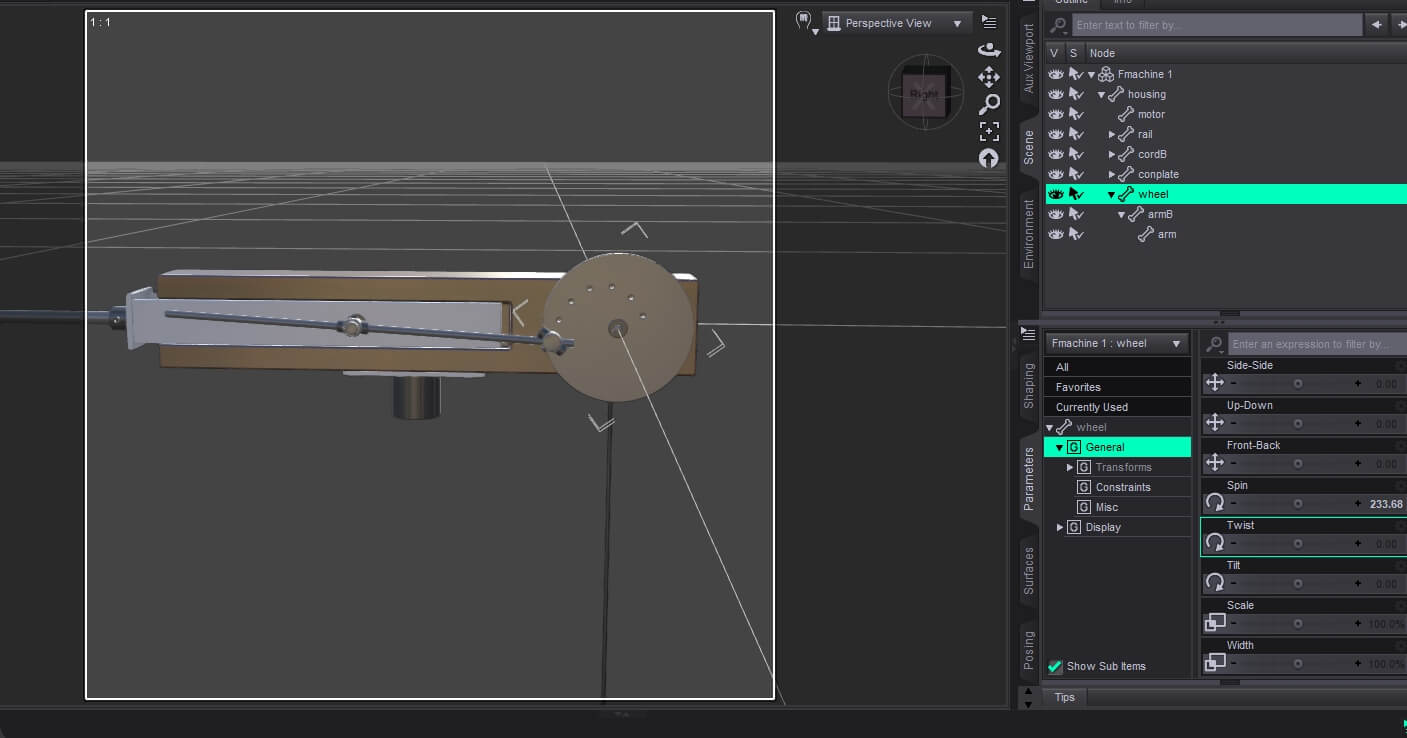

The implementation should work something like it does in that Poser Product, when I select the "wheel" Bone in the Poser Product, I have a "Spin" slider in the Parameters Tab. When I move the slider, the Wheel turns. When the Wheel moves, the attached Rod moves along with it. However, I also want to move another Part. Back to the GIF, I want to create a Movement where, using a slider, I can rotate the Wheel and simultaneously move the attached rod as well as the blue Pistons.

Is it possible to implement something like this in Daz Studio? I don't want to create an Animation, the Movement should simply be adjustable using the slider in the Parameters Tab. Has anyone perhaps created something like this before?

Product: https://www.renderotica.com/store/sku/47058_Davo-s-Studio-B-Fuck-Machines-

Forum Image
Forum Image
Forum Image


Luxe MuseSun, Sep 06
Karma: 9,337
Hi, bluewoods.

I'm not sure it'll be the same, but I think it follows the same principle. If you download my free Surface Pro item, you can see how I link things to make the tablet and the lid rotate.
Luxe MuseSun, Sep 06
Karma: 9,337
Forum Image
bluewoodsSun, Sep 06
Karma: 278

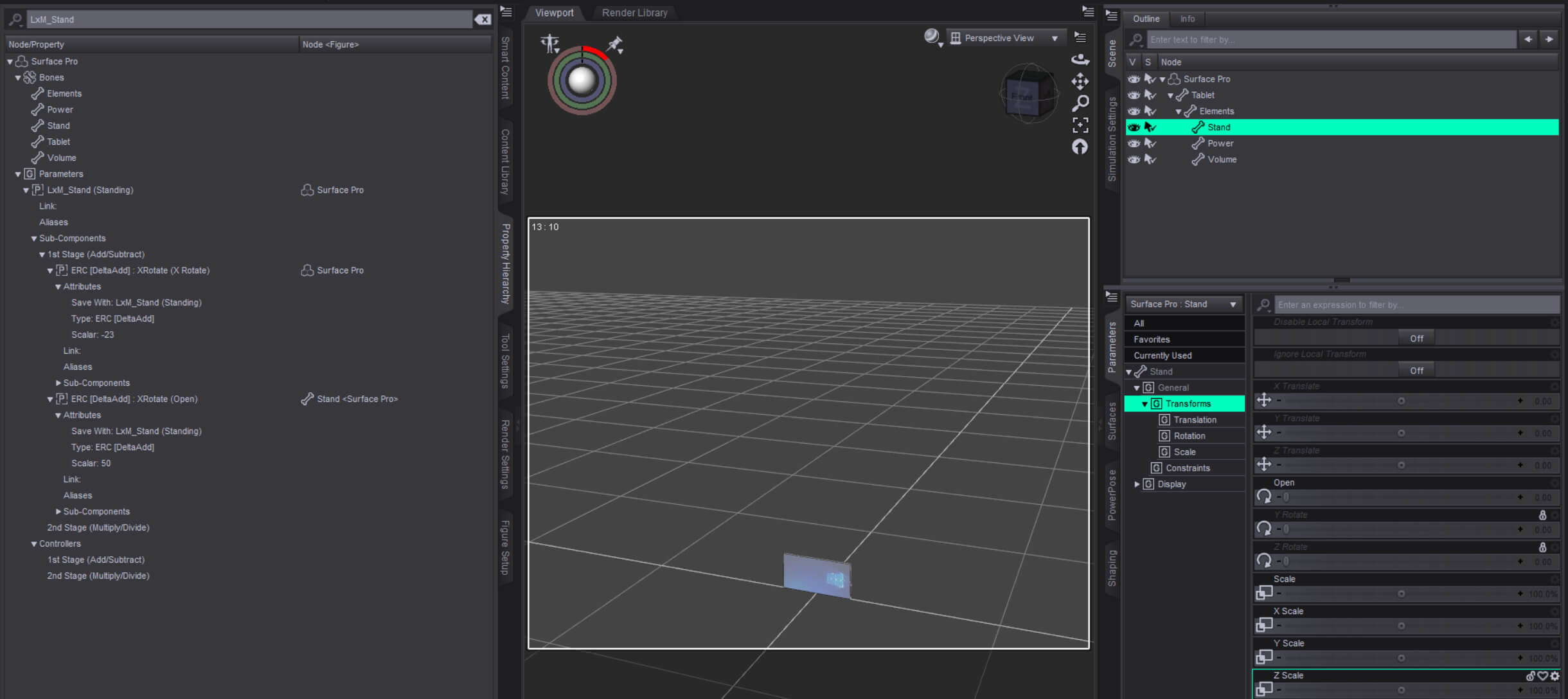

Hello Luxe Muse, I would certainly say that the mechanism in the Tablet could operate in the same way. After all, a Movement causes a second Part to move simultaneously. I noticed in your Screenshot that, within the Structure on the left-hand Side, there are several "P"s inside a small square, with "ERC" next to them. Can you explain to me what "ERC" is? How do I create an "ERC" like that? How many of these "ERC"s can be connected in a row?
deathdSun, Sep 06
Karma: 1,666
https://www.daz3d.com/creating-content-for-daz-studio
This tutorial taught me everything important about rigging things like that. Worth every penny
